Handheld USSD Code Prepaid Airtime Vending Machine WIFI Thermal GPRS SMS Printer

Handheld USSD Code Prepaid Airtime Vending Machine WIFI Thermal GPRS SMS Printer

Handheld USSD Code Prepaid Airtime Vending Machine WIFI Thermal GPRS SMS Printer

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Description

Handheld USSD Code Prepaid Airtime Vending Machine WiFi Thermal GPRS SMS Printer

It works with a gsm sim card for SMS, USSD, STK, and GPRS mode. It could receive and print normal sms, orconnects with USSD STK server for Airtime Vending, Prepaid Airtime, Mobile Top Up.

Key Features:

DIY Logo;
DIY Ticket format;
Detailed instruction and 24/7 technical help.
Remote upgrade;
Remote setting;

OEM/ODM



HOW IT WORKS

USSD STK Airtime Vending

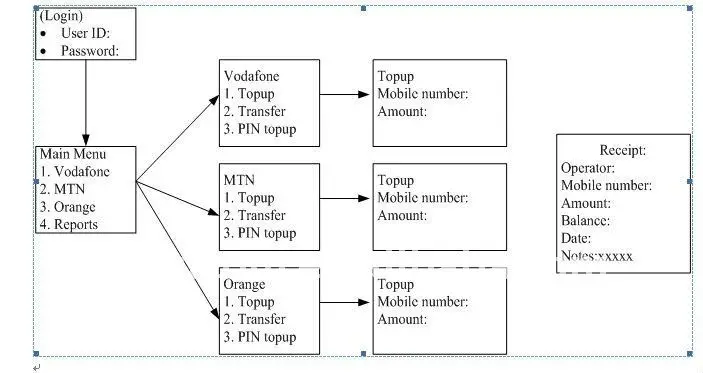

If the sim card supports USSD or STK, it could be used to the SMS Printer. People will dial USSD code, follow the interactive menu to do the top up. In the end, the printer will prints the received voucher info.
It has been widely used for Africa regions, eg., Uganda, South Africa, Kenya, Nigeria, etc., especially for M-PESA solutions



GPRS Connection

- HTTPC Protocol
If customer builds web server, and wants the printer to communicate with the web server for airtime vending. We provide HTTPC protocol for clients to design the interactive menu.

- Wordpress Plugin
If customer wants to use the printer for other applications, i.e., for receiving online orders via GPRS connection. There is printer plugin for wordpress woocommerce & wordpress wppizza, or opencart system.
Negociate with Goodcom for details.

WiFi Connection
It's optional to add WiFi module to the printer. User will be able to scan WiFi network through the printer menu, and connect with it


SPECIFICATIONS


Item
Technology Standard
Memory
Flash:8MB RAM:4MB
GSM modem
SIM840W
Display
128*64 pixels
Keyboard
21keys
Battery
1700mAh Li-ion battery, supports printing by battery supplied. Can be used for more than 96 hours in idle mode by battery supplied.
Developing environment
OS of SIM840W for design
Dimensions
202mm*90mm*57mm
Weight
≈0.43kg
AC input voltage
90V~250V AC
Power adapter output
DC 12V/2
Connection
GPRS & SMS
GSM frequency
GSM: 850/900/1800/1900
GSM protocol
ETSI GSM Phase 2+
SIM Card Slot
1*SIM card slot
Printing method
Thermal-line dot method
Speed
Maximum 70mm/sec(480 dot line/sec)
Paper
Thermal roll paper (standard) 57*50mm
Printing head life
Pulse resistance:100 million pulses/dot (under our standard conditions);

Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)
About Us

PACKING

Neutral color box packing

Delivery

For samples: within 3 days after the arrival of payment.

For bulk orders: negotiation based on the quantity

FAQ


Q 1: What are your printer/pos mainly used for?
A: restaurant online food takeaway / delivery, mobile topup, airtime recharge, mobile payment (cash in & cash out), utility bill payment (e.g. water, electricity, gas, etc.), lottery, parking tickets, bus ticketing, etc.

Q 2: What connectivities / interfaces can your printer/pos support?
A: The printers are mainly working via Wifi, LAN, 3G, GPRS, SMS, USSD, STK, Bluetooth, USB, etc.

Q 3: Should a SIM card required for the printer/pos?
A: It depends on the certain Model No(s). For the printer/pos that support Wifi or LAN, they can work without SIM card. For 4G/3G/GPRS/SMS Printers, the SIM card is required.

Q 4: What languages are supported by the printer/pos?
A: Goodcom printer/pos supports multiple language, e.g. English, Spanish, Arabic, Persian, Italian, Portuguese, French, Danish, Polish, Swedish, Vietnamese, German, Chinese, etc. (Customizable)

Q 5: Can the format of layout(printout, receipt, ticket) be customized?
A: Yes. Goodcom provides the tool for format DIY.

Q 6: Can the software or configurations be upgraded remotely to the printer/pos?
A: Yes.

Q 7: What is the warranty of the printer?
A: 1 year

Q 8: What are the after-sales services provided by Goodcom?
A: We offer timely online assistance, technical help, and life-long repairing services for the product.

Q 9: What is the SMS Printer?
A: The SMS Printer is a small, portable, standalone device for receiving and printing messages sent to it. The unit works with most network providers and can be applied for many different regions.

Q 10: How does the SMS Printer work?
A:The SMS message will be received and printed exactly as sent from the sender's phone number. And custom message formatting can be implemented. The SMS printer allows you to send custom messages directly to the printer, and with preset format, the SMS Printer will read and print the message exactly as what you want.

Q 11: How does the WIFI/4G/3G/GPRS/WLAN Printer/Pos Work?
A: The printer/pos will communicate with web server through WIFI/4G/3G/GPRS/WLAN data transfer. The communication should be done based on http get protocol.

Q 12: What's the advantage of using WIFI/4G/3G/GPRS/WLAN instead of SMS?
A: It has the advantage of using a WIFI/4G/3G/GPRS/WLAN connection to send the data to the printer/pos. This results in a lower cost for each transaction to be sent to the printer/pos.

Q 13: Why using a WIFI/4G/3G/GPRS/WLAN/SMS Printer/Pos for Restaurant Online Food Ordering?
A: It's a system that enables restaurants to get their orders directly from online ordering website/app. Through this online food order printer, restaurant could be able to check the order content, accept or reject the order, select or input delivery time, etc..
