The printer can receive an SMS from the number you set or any other sender.
It is very popular in global market, can insert one sim card to support GPRS and SMS.
Frequency bands for 2G: GSM 850/900/1800/1900 MHz
Also can connect with wifi router easily and not any further cost as per GPRS data

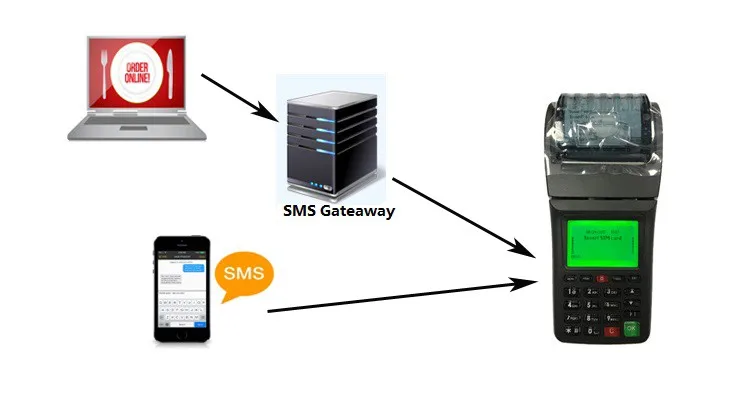

The basic way is to receive remote message from mobile directly or from website, and then print it out automatically or manually.
The printer can receive an SMS from the number you set or any other sender.
it requires u have your own website platform, including the ip addr, port, filepath, callback url.
The device uses data to communicate with the website, the device will retrieve the information and process it accordingly and convert the mark-up data to a complete order. The devices can also feedback the confirmation of the order via GPRS connection to the website server in order to update the website database with the order status.
Printer needs to set up an email account for receiving email orders. Printer will query email server regularly to read orders. Once there is order, it will print automatically.
N.B.: It only prints text/plain emails
Both non-ssl and ssl account should be supported!
Item | Technology Standard |
Memory | Flash:8MB RAM:4MB |
GSM modem | SIM800 |
Display | 128*64 pixels |
Keyboard | 21keys |
Battery | 1700mAh Li-ion battery, supports printing by battery supplied. Can be used for more than 96 hours in idle mode by battery supplied. |
Developing environment | OS of SIM840W for design |
WIFI | Maximum Output Power: 802.11b: +16 +/- 2dBm 802.11g: +14 +/- 2dBm 802.11n: +13 +/- 2dBm Minimum Receiver sensitivity: 802.11b:-93 dBm 802.11g:-85 dBm 802.11n:-82 dBm Frequency: 2,412 -2,484 MHz Security Mode: WEP,WPA-PSK,WPA2-PSK Security type: WEP64/WEP128/TKIP/AES |
Dimensions | 202mm*90mm*57mm |
Weight | ≈0.43kg |
AC input voltage | 90V~250V AC |
Power adapter output | DC 12V/2 |
Connection | WIFI & GPRS & SMS |
GSM frequency | GSM: 850/900/1800/1900 |
GSM protocol | ETSI GSM Phase 2+ |
SIM Card Slot | 1*SIM card slot |
Printing method | Thermal-line dot method |
Speed | Maximum 70mm/sec(480 dot line/sec) |
Paper | Thermal roll paper (standard) 57*50mm |
Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
