Product Description

SIM Card Pos Parking Bus Ticketing WIFI GPRS SMS Thermal Printer Lottery Ticket Machine

The SMS printer is a small, portable and fast speed, standalone device for receiving and printing text messages sent to it. It takes the advantages of the wide coverage of mobile communication network and convenient installation to meet the fast increasing requirement of users. The main functions are "Air Voucher Charge" and "SMS Printer"


Key Features:

DIY Logo;
DIY Ticket format;
Detailed instruction and 24/7 technical help.
Remote upgrade;
Remote setting;

OEM/ODM


HOW IT WORKS

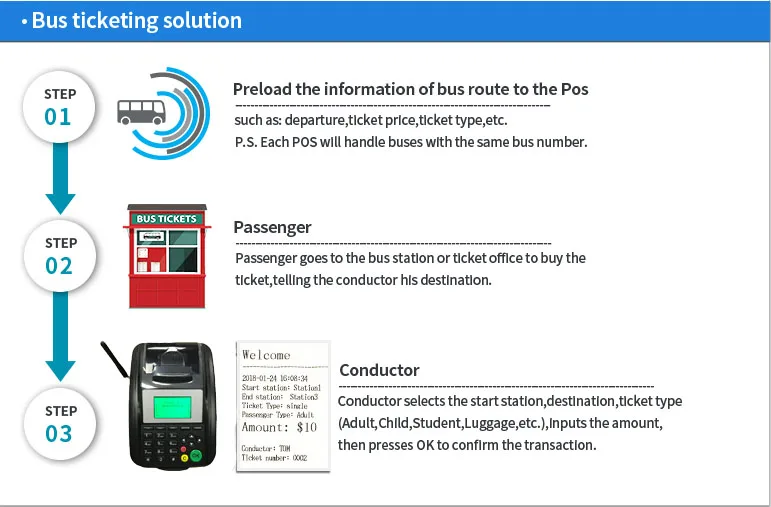

Bus Ticketing (demo workflow)

It issues and prints bus tickets for passengers. The working flow (menu) could be customized based on different requirement, which provides convenience for the management of road transport corporations and private bus operators.

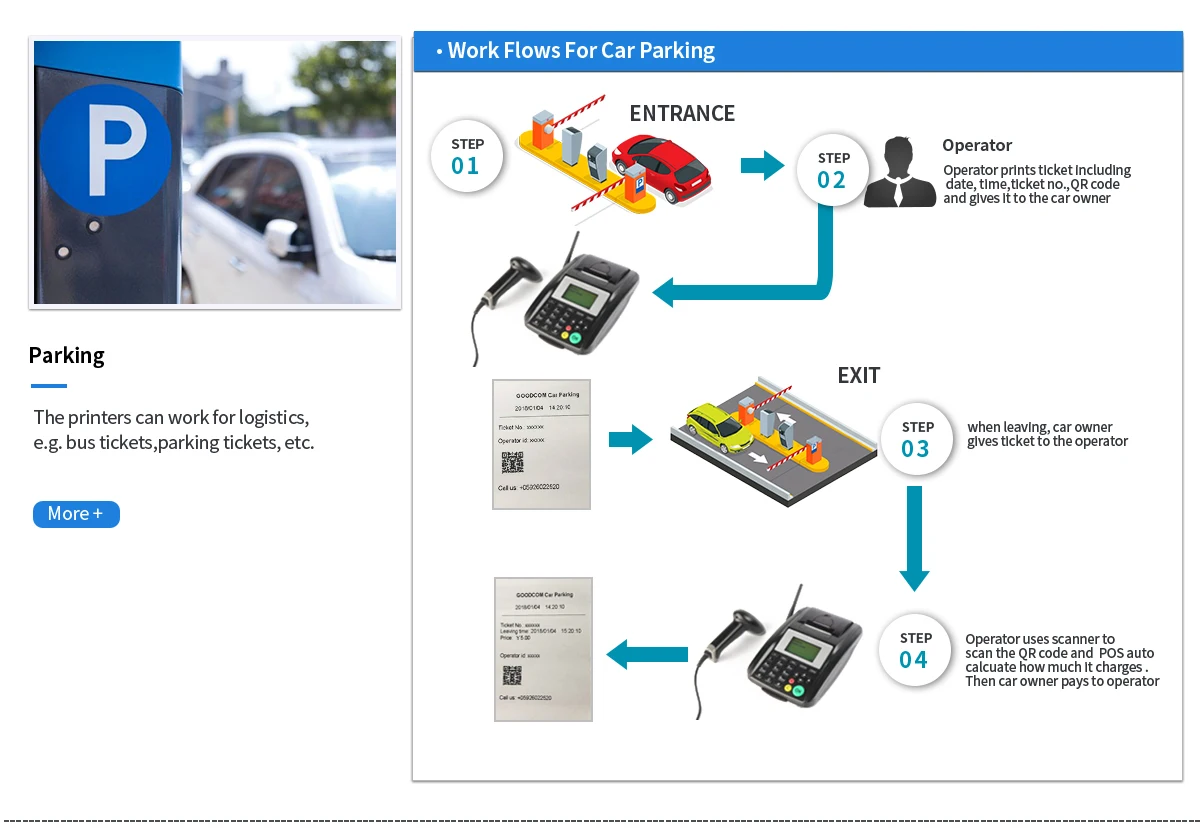

Car Parking Ticket (Unversal version of Software )

-When car is arriving, it prints the entry ticket for car owner; -When car is leaving, it prints payment ticket with parking time, amount, parking time, etc.

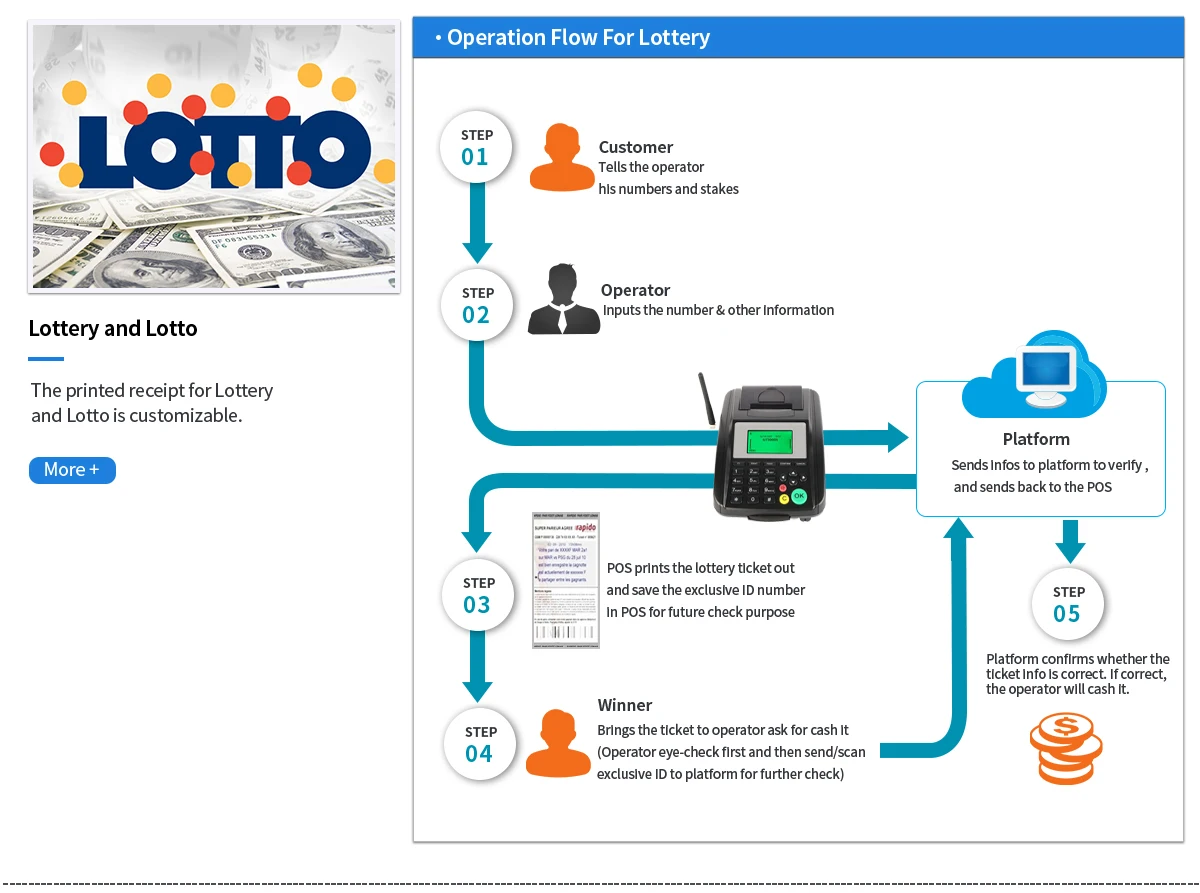

Lottery Ticketing (Universal version of Software)

Basically it could be used for generating lottery ticket for customers, and transferring ticket info to the remote database. It can also come with specific functions, eg., printing daily report, checking lottery prize, etc., which provides much convenience for the management of lottery business.


CONNECTION

SMS Mode - Text sent from the mobile to the printer; - Online orders generated into SMS and sent to the printer.
GPRS Mode: Remote data sent from web server to be sent to the printer.
WIFI Mode: it's optional. Works same like GPRS mode.


SPECIFICATIONS


Item
Technology Standard
Memory
Flash:8MB RAM:4MB
GSM modem
SIM840W
Display
128*64 pixels
Keyboard
24keys
Battery
1500mAh Li-ion battery, supports printing by battery supplied. Can be used for more than 96 hours in idle mode by battery supplied.
Developing environment
OS of SIM840W for design
Dimensions
202mm*90mm*57mm
Weight
≈1.2kg
AC input voltage
90V~250V AC
Power adapter output
DC 12V/2
Connection
GPRS & SMS is standard; WIFI is optional
GSM frequency
GSM: 850/900/1800/1900
GSM protocol
ETSI GSM Phase 2+
SIM Card Slot
1*SIM card slot
Printing method
Thermal-line dot method
Speed
Maximum 70mm/sec(480 dot line/sec)
Paper
Thermal roll paper (standard) 57*50mm
Printing head life
Pulse resistance:100 million pulses/dot (under our standard conditions);

Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)
About Us

PACKING

Neutral color box packing

Delivery

For samples: within 3 days after the arrival of payment.

For bulk orders: negotiation based on the quantity

FAQ


Q 1: What are your printer/pos mainly used for?
A: restaurant online food takeaway / delivery, mobile topup, airtime recharge, mobile payment (cash in & cash out), utility bill payment (e.g. water, electricity, gas, etc.), lottery, parking tickets, bus ticketing, etc.

Q 2: What connectivities / interfaces can your printer/pos support?
A: The printers are mainly working via Wifi, LAN, 3G, GPRS, SMS, USSD, STK, Bluetooth, USB, etc.

Q 3: Should a SIM card required for the printer/pos?
A: It depends on the certain Model No(s). For the printer/pos that support Wifi or LAN, they can work without SIM card. For 4G/3G/GPRS/SMS Printers, the SIM card is required.

Q 4: What languages are supported by the printer/pos?
A: Goodcom printer/pos supports multiple language, e.g. English, Spanish, Arabic, Persian, Italian, Portuguese, French, Danish, Polish, Swedish, Vietnamese, German, Chinese, etc. (Customizable)

Q 5: Can the format of layout(printout, receipt, ticket) be customized?
A: Yes. Goodcom provides the tool for format DIY.

Q 6: Can the software or configurations be upgraded remotely to the printer/pos?
A: Yes.

Q 7: What is the warranty of the printer?
A: 1 year

Q 8: What are the after-sales services provided by Goodcom?
A: We offer timely online assistance, technical help, and life-long repairing services for the product.

Q 9: What is the SMS Printer?
A: The SMS Printer is a small, portable, standalone device for receiving and printing messages sent to it. The unit works with most network providers and can be applied for many different regions.

Q 10: How does the SMS Printer work?
A:The SMS message will be received and printed exactly as sent from the sender's phone number. And custom message formatting can be implemented. The SMS printer allows you to send custom messages directly to the printer, and with preset format, the SMS Printer will read and print the message exactly as what you want.

Q 11: How does the WIFI/4G/3G/GPRS/WLAN Printer/Pos Work?
A: The printer/pos will communicate with web server through WIFI/4G/3G/GPRS/WLAN data transfer. The communication should be done based on http get protocol.

Q 12: What's the advantage of using WIFI/4G/3G/GPRS/WLAN instead of SMS?
A: It has the advantage of using a WIFI/4G/3G/GPRS/WLAN connection to send the data to the printer/pos. This results in a lower cost for each transaction to be sent to the printer/pos.

Q 13: Why using a WIFI/4G/3G/GPRS/WLAN/SMS Printer/Pos for Restaurant Online Food Ordering?
A: It's a system that enables restaurants to get their orders directly from online ordering website/app. Through this online food order printer, restaurant could be able to check the order content, accept or reject the order, select or input delivery time, etc..
