Parking Bus Ticketing WIFI GPRS Handheld Electronic Ticket Machine

Parking Bus Ticketing WIFI GPRS Handheld Electronic Ticket Machine

Parking Bus Ticketing WIFI GPRS Handheld Electronic Ticket Machine

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Description

WHY CHOOSE US?

NEW TECHNOLOGY,QUALITY ASSURANCE
1.Professional R & D Team: 400+ customization.600K+ terminals installed,100+ countries.
2.Professional Team: over 15 years of industry experience and expertise for your customized solutions.
3.Best Service:offer server for sample test,online support,3-7 days for shipment.


Key Features

1.Multiple Language: Danish, Norwegian, Swedish, Mexican, Portuguese, Spanish, German, Italian, Greek, Russian, Azerbaijani, Slovak, Polish, French,English, Chinese

2.Software & Parameters of the printer support remote upgrade.

3.Receipt DIY tool provided.

4.Logo tool provided.

5.Customization,ODM & OEM.

6.Efficient technical/customers online service.


7.1 year warranty and long-life technical support

Application

Handheld Electronic Ticket Machine.

The application of parking and bus ticketing is customizable(OEM & ODM).


The Basic work flow for parking should be:

1.Before Parking,the operator press a key in the machine to print out a ticket when the car is entering to the parking lot.

2. When the car leave out the parking lot,the operator press a key in the machine again to print out the payment ticket.(Include the parking date & time, parking amount,operator name,etc)

This machine can also support online or offline bus ticketing application.

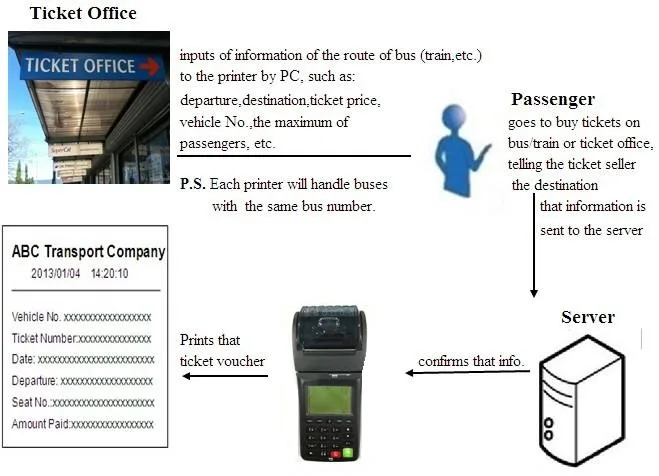

Example work flow for bus ticketing.

Online
1)the printer should connect with server via WIFI or GPRS by setting the ip address,port,url etc.
2)Bus No,Route,Price etc can be sent to the printer via server.
3)Conductor choose the start/end station,bus ticket will print out automatically,then printer will send a callback to the server.

Offline.
1)Administrator download the route to the printer before the trip.
2)Comductor choose the start/end station and enter the ticket price,ticket print out automatically.
3)After finished the trip,all transaction records can be uploaded to the computer via a special tool.

Further information pls contact:

what's app: +86-15260603768
skype: goodcom1655
Attn: Chris Shaw

Technology Data
Item
Technology Standard
Memory
Flash:8MB RAM:4MB
GSM modem
SIM800
Display
128*64 pixels
Keyboard
21keys
Battery
1700mAh Li-ion battery, supports printing by battery supplied. Can be used for more than 96 hours in idle mode by battery supplied.
Developing environment
OS of SIM840W for design
WIFI
Maximum Output Power:
802.11b: +16 +/- 2dBm
802.11g: +14 +/- 2dBm
802.11n: +13 +/- 2dBm

Minimum Receiver sensitivity:
802.11b:-93 dBm
802.11g:-85 dBm
802.11n:-82 dBm

Frequency:
2,412 -2,484 MHz

Security Mode:
WEP,WPA-PSK,WPA2-PSK

Security type:
WEP64/WEP128/TKIP/AES
Dimensions
202mm*90mm*57mm
Weight
≈0.43kg
AC input voltage
90V~250V AC
Power adapter output
DC 12V/2
Connection
WIFI & GPRS & SMS
GSM frequency
GSM: 850/900/1800/1900
GSM protocol
ETSI GSM Phase 2+
SIM Card Slot
1*SIM card slot
Printing method
Thermal-line dot method
Speed
Maximum 70mm/sec(480 dot line/sec)
Paper
Thermal roll paper (standard) 57*50mm
Printing head life
Pulse resistance:100 million pulses/dot (under our standard conditions);

Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)
Main Products
About us

Company Profile..

Founded in 2002, GOODCOM is a high-tech telecom company that specializes in Researching & Designing and manufacturing of wireless telecommunication terminals and solutions.

Within the 15 years, we have gained an excellent experience in the manufacturing of various products like GSM SMS Printer, LAN WIFI Printer, 3G printer, 3G & Wifi Printer, Bluetooth Printer and Card Reader Printer.


Our Factory.


Packing Delivery

Packing.

1pc to a standard box,and 10 boxes to s standard carton.

Delivery.

Lead Time: 1-3 days for the sample after received the payment. And about 1 week for bulk orders
Delivery: Shipment will be made by Express generally,different express way for your choice.
