Handheld 3G POS Retail Portable Handy Bill Machine with Thermal Printer

Handheld 3G POS Retail Portable Handy Bill Machine with Thermal Printer

Handheld 3G POS Retail Portable Handy Bill Machine with Thermal Printer

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Description


Handheld 3G POS Retail Portable Handy Bill Machine with Thermal Printer


Goodcom Handheld 3G/Wifi/GPRS/SMS Printer GT6000GW is a wireless thermal receipt printer that brings convinience in any remote receipt/ticket printing application. Such as restaurant online ordering, mobile payment, bus ticket, shops, parking lot, etc.



Key Features:

* Highly customizable
* timely technical & after sales support
* with 1-year-warranty
* CE certified
* GSM Module, GSM 850/900/1800/1900mHz
* 58mm receipt print via SMS/GPRS


How it Works


Follow the customized flow, people are allowed to pay bills for water, electricity, utility, etc., on the machine. It transport bill info to the web server via 3G/GPRS/SMS connection, and prints out the bill voucher for customers.

An Example Work Flow for Mobile Bill Payment

Software Development for Other Applications

-SDK Provided


Specifications


Item
Technology Standard
Memory
16MB
WCDMA module
SIM5320
Display
128*64 pixels
Keyboard
21keys
Battery
1700mAh Li-ion battery, supports printing by battery supplied. Can be used for more than 96 hours in idle mode by battery supplied.
Developing environment
OS of SIM5320 for design
Dimensions
202mm*90mm*57mm
Weight
≈0.43kg
AC input voltage
90V~250V AC
Power adapter output
DC 12V/2
Connection
3G & GPRS & SMS
GSM frequency
GSM: 850/900/1800/1900
WCDMA frequency
WCDMA850/1900(optional)
WCDMA900/2100 (optional)
WCDMA850/2100 (optional)
GSM protocol
ETSI GSM Phase 2+
SIM Card Slot
1*SIM card slot
Printing method
Thermal-line dot method
Speed
Maximum 70mm/sec(480 dot line/sec)
Paper
Thermal roll paper (standard) 57*50mm
Printing head life
Pulse resistance:100 million pulses/dot (under our standard conditions);

Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)


Specific Functions

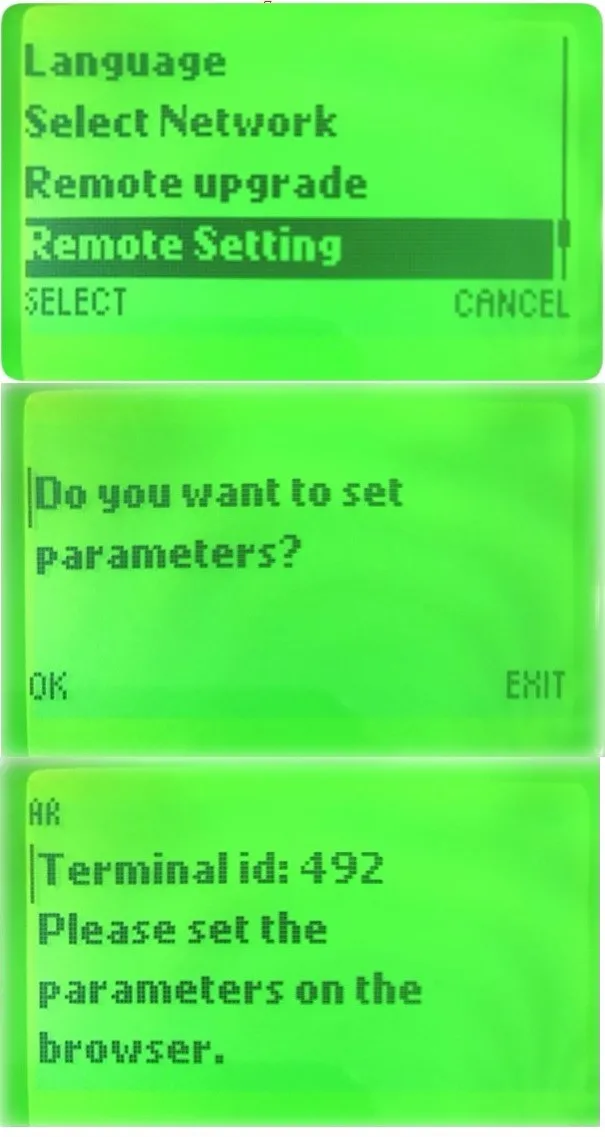

Remote Setting & Upgrading


Remote setting

check the terminal ID from device menu, and login the web setting interface with it. It could be done from remote locations
Remote Upgrading
the newest software version will be uploaded to our server, press one button and it will auto upgrade from our server.


DIY Printout Format & Logo


DIY LOGO:

for printout, idle screen, startup.

tip: the logo could be remotely upgraded to the device.

DIY printout format:
font size, allignment, new line charactor, etc.




Related Product


WiFi Bill Printing Machine

SMS/GPRS/WiFi Connection

Card Payment Terminal

NFC/RFID/Smart/Magnetic

        Card Supported

Android Pos Payment Terminal

Android 5.1/7.1 supported, Free Demo, Free SDK

About Us

PACKING

Neutral color box packing

Delivery

For samples: within 3 days after the arrival of payment.

For bulk orders: negotiation based on the quantity

FAQ


Q 1: What are your printer/pos mainly used for?
A: restaurant online food takeaway / delivery, mobile topup, airtime recharge, mobile payment (cash in & cash out), utility bill payment (e.g. water, electricity, gas, etc.), lottery, parking tickets, bus ticketing, etc.

Q 2: What connectivities / interfaces can your printer/pos support?
A: The printers are mainly working via Wifi, LAN, 3G, GPRS, SMS, USSD, STK, Bluetooth, USB, etc.

Q 3: Should a SIM card required for the printer/pos?
A: It depends on the certain Model No(s). For the printer/pos that support Wifi or LAN, they can work without SIM card. For 4G/3G/GPRS/SMS Printers, the SIM card is required.

Q 4: What languages are supported by the printer/pos?
A: Goodcom printer/pos supports multiple language, e.g. English, Spanish, Arabic, Persian, Italian, Portuguese, French, Danish, Polish, Swedish, Vietnamese, German, Chinese, etc. (Customizable)

Q 5: Can the format of layout(printout, receipt, ticket) be customized?
A: Yes. Goodcom provides the tool for format DIY.

Q 6: Can the software or configurations be upgraded remotely to the printer/pos?
A: Yes.

Q 7: What is the warranty of the printer?
A: 1 year

Q 8: What are the after-sales services provided by Goodcom?
A: We offer timely online assistance, technical help, and life-long repairing services for the product.

Q 9: What is the SMS Printer?
A: The SMS Printer is a small, portable, standalone device for receiving and printing messages sent to it. The unit works with most network providers and can be applied for many different regions.

Q 10: How does the SMS Printer work?
A:The SMS message will be received and printed exactly as sent from the sender's phone number. And custom message formatting can be implemented. The SMS printer allows you to send custom messages directly to the printer, and with preset format, the SMS Printer will read and print the message exactly as what you want.

Q 11: How does the WIFI/4G/3G/GPRS/WLAN Printer/Pos Work?
A: The printer/pos will communicate with web server through WIFI/4G/3G/GPRS/WLAN data transfer. The communication should be done based on http get protocol.

Q 12: What's the advantage of using WIFI/4G/3G/GPRS/WLAN instead of SMS?
A: It has the advantage of using a WIFI/4G/3G/GPRS/WLAN connection to send the data to the printer/pos. This results in a lower cost for each transaction to be sent to the printer/pos.

Q 13: Why using a WIFI/4G/3G/GPRS/WLAN/SMS Printer/Pos for Restaurant Online Food Ordering?
A: It's a system that enables restaurants to get their orders directly from online ordering website/app. Through this online food order printer, restaurant could be able to check the order content, accept or reject the order, select or input delivery time, etc..

This product has been highly recommended with unparalleled economic benefits. The product is equipped with various interfaces such as serial and USB ports. This product greatly meets customers' particular requirements with its outstanding characteristics. The product is equipped with various interfaces such as serial and USB ports.
