Gsm Fixed Wireless Terminal POS Ticketing Machine Receipt Printer for Online Ordering/E-Voucher/E-Payment/E-Top up-Goodcom

Gsm Fixed Wireless Terminal POS Ticketing Machine Wireless Receipt Printer for Online Ordering/E-Voucher/E-Payment/E-Top up

Product Description

GPRS SMS Printer is working by receiving remote information from SMS Gateway, or communicate with web server and receive the
response from web server. As it is compatible with GPRS, SMS, USSD and STK, it is also workable for mobile top up, airtime
recharge, mobile payment, bus tickets, parking tickets, lottery, etc.

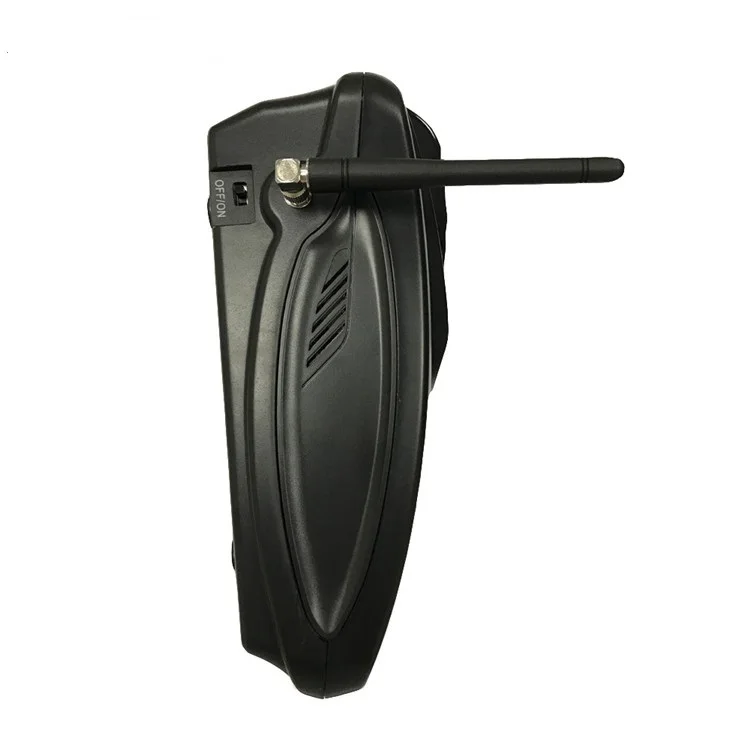

Detailed Images

Specification

Items	Technology Standard
Hardware/Software/Mechanical
CPU	SIM800
Memory	Flash: 8MB RAM:4MB
GSM Module	SIM800
Display	128*64pixel
Keypad	24keys
Battery	DC 7.4V, 1100mAh rechargeable battery
Developing environment	OS of SIM840w for design
Dimensions	21.52610.5cm
Weight	0.8kg
GSM parameters
RF transmit frequency	GSM850 824-849MHz E-GSM900 880-915MHz DCS1800 1710-1785MHz PCS1900 1850-1910MHz
Antenna Gain	2.5dbm
Micro Printer
Printing method	Thermal-line dot method
Paper	Thermal roll paper (standard) 57*50mm
Effective Printing area	48mm
Speed	Maximum 70mm/sec(560 dot line/sec)
Printing resolutions	8 dots/mm
Number of columns	ANK 32columns/line
Printing head life	Pulse resistance:100 million pulses/dot (under our standard conditions); Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)

Application

GSM Terminal POS For Mobile Airtime Topup and Electronic Voucher

User can use the printer to do the airtime recharge, after successful, it will print out the recharge receipt for consumers.

The printer can not only communicate with the user's server via 4G/3G/GPRS mode for airtime recharge, but also can communicate with the server of mobile operator via USSD/STK mode to finish the recharge.

GSM Terminal for lottery business

This lottery application can not only be used for lottery sale, but can also print lottery voucher for customer and for user's record. After the customer finished the play, it sends data to a centre server, and if server reply back successful message, the printer prints lottery voucher.Working flow, lottery type, play type, amount, etc., can all be customized as what u required

Gsm Printer for food online ordering and takeaway

It receives order through WiFi/4G/3G/GPRS data transfer, SMS, or Email, the order will be printed out automatically or manually.

Allow the operator to either type a number of minutes for expected delivery time or reject the order with chosen reason. The result of the above action would then send back to the online ordering system.

Bill Payment Pos Terminal with Printer

When customers come to pay bill, the agent can use the handheld payment pos terminal to generate the ticket.
Follow the customized flow, people are allowed to pay bills for water, electricity, utility, etc., on the machine. It transport bill info to the web server via 3G/GPRS/SMS connection, and prints out the bill voucher for customers.

Recommend Products

About Us

PACKING

Neutral color box packing

Delivery

For samples: within 3 days after the arrival of payment.

For bulk orders: negotiation based on the quantity
