GOODCOM New Listing GT5000SW Restaurant Online Order Printer supports WIFI and SIM Card
Brief Introduction:
GT5000SW is GOODCOM new updated product. With WIFI and SIM Card ability, takes the advantages of the wide coverage of mobile communication network and convenient installation to meet the fast increasing requirement of users. The main functions are “Air Voucher Charge” and “SMS Printer”.
Suitable for restaurants to receive orders either directly from the customer or from a dispatcher, taxis/cab firms/delivery drivers to receive instructions on new pickups/deliveries, or any other situation where messages need to be conveyed to a remote party.
Features:
* GPRS/SMS/USSD/STK connectivities supported
* Can print SMS, USSD message
* Can keep 50 PCS SMS Message
* Hand free call function
* Support multi protocol, like HTTP, SOAP, HTTPS and POP3.
* Can DIY order format and Logo
Specification:
Items | Technology standard |
Model: GT5000S | |
Hardware/ software /Mechanical | |
CPU | SIM800 |
Memory | Flash: 8MB RAM:4MB |
GSM module | SIM800 |
Display | 128*64 pixels |
Keyboard | 24keys |
Battery | DC 7.4V, 1100mAh rechargeable battery |
Developing environment | OS of SIM840w for design |
Dimensions | 21.5*26*10.5cm |
Weight | 0.8kg |
GSM parameters | |
RF transmit frequency | GSM850 824-849MHz E-GSM900 880-915MHz DCS1800 1710-1785MHz PCS1900 1850-1910MHz |
Receiver sensitivity | <-104dBm |
GSM protocol | ETSI GSM Phase 2+ |
Transmit power | <2W(GSM,EGSM), <1W(DCS,PCS) |
RF receiving frequency | GSM850 869-894MHz E-GSM900 925-960MHz DCS1800 1805-1880MHz PCS1900 1930-1990MHz |
Emission output power | GSM850 33 dBm ±2 dBm E-GSM900 33 dBm ±2 dBm DCS1800 30 dBm ±2 dBm PCS1900 30 dBm ±2 dBm |
Antenna Gain | 2.5dbm |
Micro Printer | |
Printing method | Thermal-line dot method |
Paper | Thermal roll paper (standard) 57*45 mm |
Effective Printing area | 48mm |
Speed | Maximum 70mm/sec(560 dot line/sec) |
Printing resolutions | 8 dots/mm |
Number of columns | ANK 32columns/line |
Printing head life | Pulse resistance:100 million pulses/dot (under our standard conditions); Abrasion resistance: paper traveling distance 50km (print ratio:25% or less) |
Communication way
1). It requires u have your own website platform, including the ip addr, port, filepath, callback url.
2). The device uses data to communicate with the website, the device will retrieve the information and process it accordingly and convert the mark-up data to a complete order.
3). The devices can also feedback the confirmation of the order via GPRS or WIFI connection to the website server in order to update the website database with the order status.

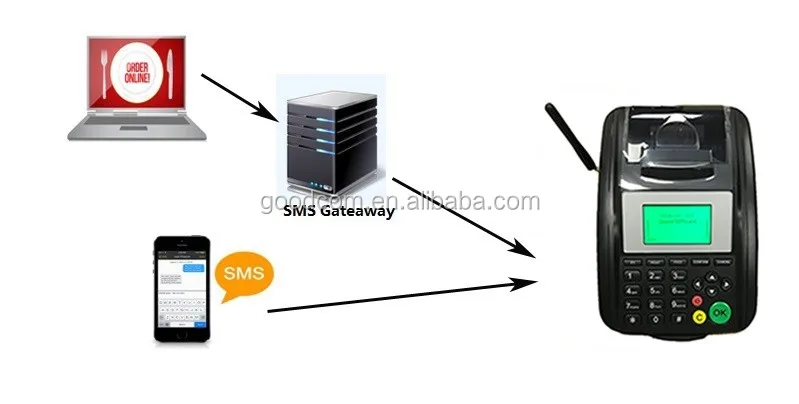

2. How the SMS Printer read and print remote order for Restaurant?
1). Customers make order via mobile phone
2). Printer receives orders and automatically print out
3). Printer operator can select confirm or reject orders, enter the delivery time or reject reasons.
4). Then the orders will be sent back to customers.
Further more, u can also install a GSM modem, and customer places their order via sms. Server forwards order to the SMS Printer located in restaurant kitchen.

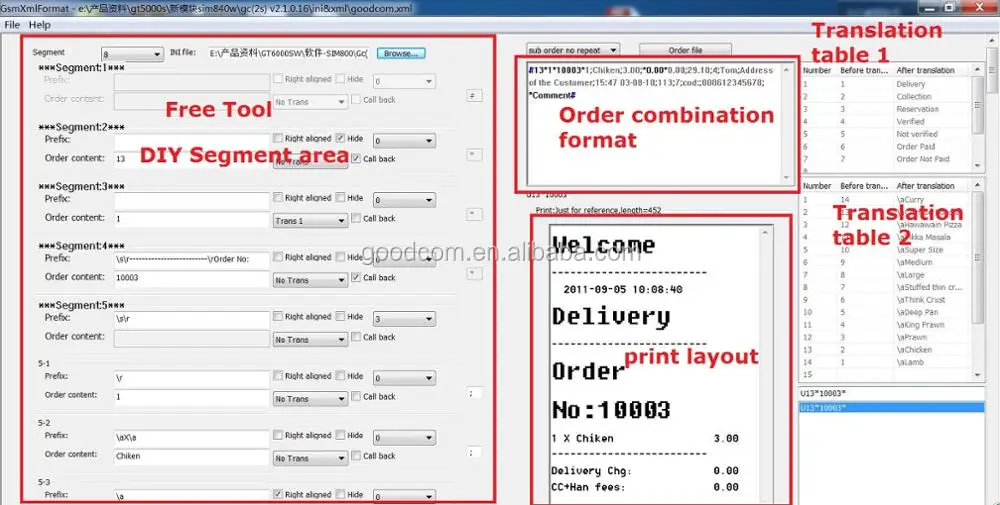

Can DIY order format
DIY Logo and remote upgrade
Clear picture
Packing
Delivery
